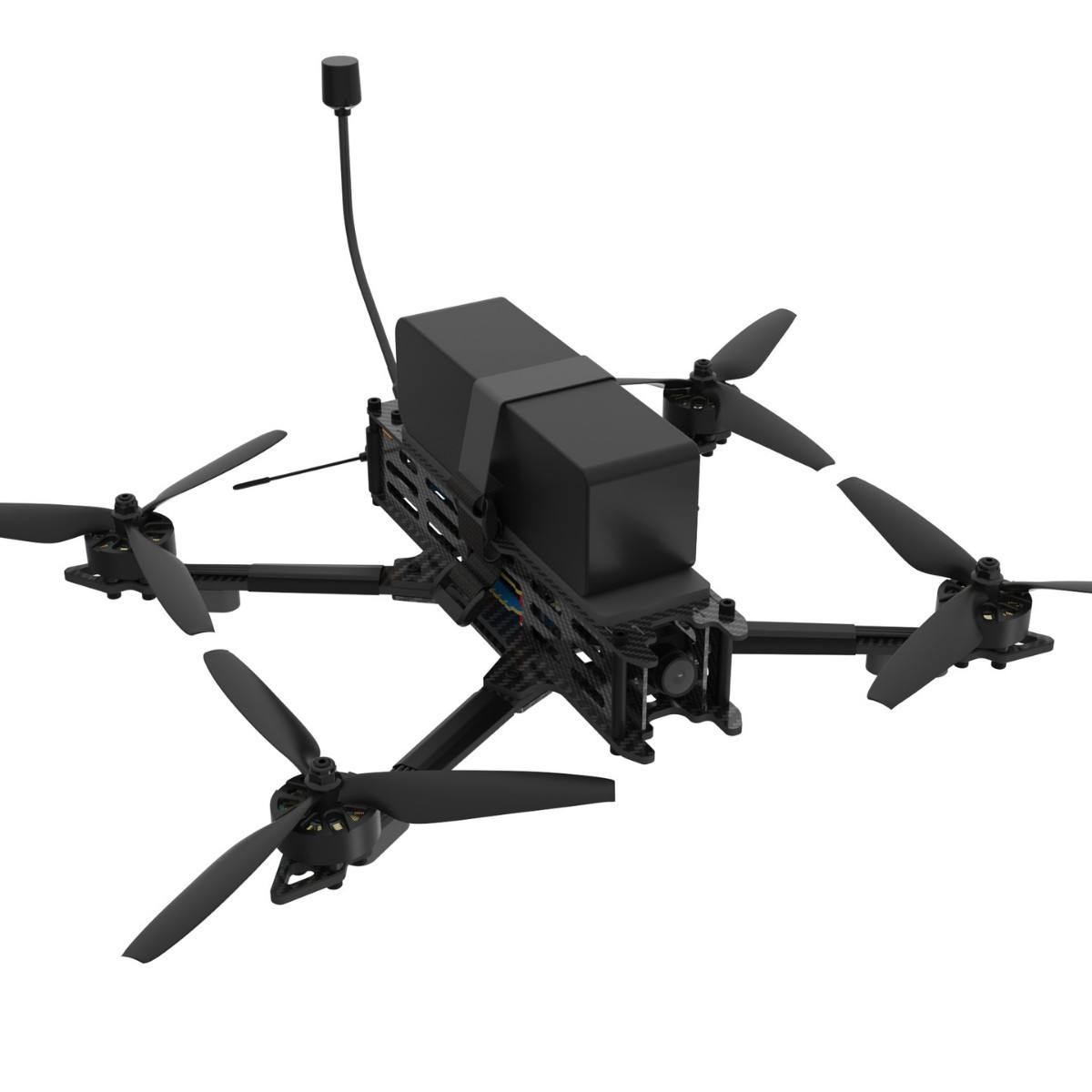

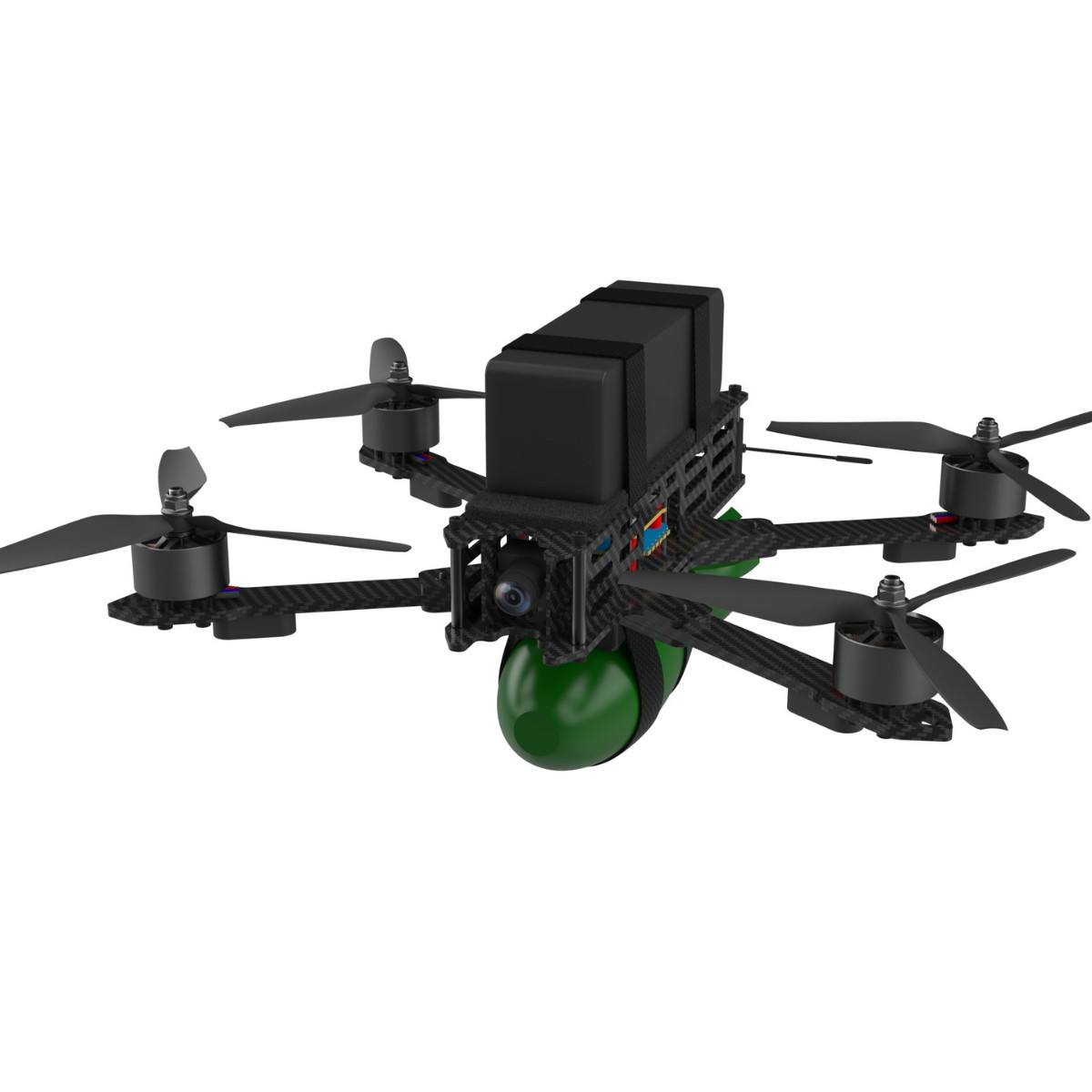

2KG Loading Drone with Long Flying Distance and 300meters Flying Heigh TF-V20
2KG Loading Drone with Long Flying Distance and 300meters Flying Heigh TF-V20
Couldn't load pickup availability
Product Specification
| Description | 2KGS Loading Drone with Long Distance Flying and Remote Control |
| Model | TF-V20 |
| Diagonal Wheelbase | 318mm |
| Propeller Size | 7-inch |
| Top plate thickness: 2mm Bottom plate thickness: 2mm Arm thickness: 4mm Clamping plate thickness: 3mm Approx. 150km/h | |
| Maximum Flight Speed | 150km/h |
| Maximum Flight Altitude | 3000 meters |
| Unloaded Flight Time | Approx. 26 minutes |
| Flight Time with 6500mAh Payload (2kg) | Approx. 10 minutes |
| -10℃ to +40℃ | |
| Flight Controller | F4 Betaflight |
| Motors | 2807kv1300 |
| OSD | Supported |
| Image Transmission | 5.8GHz 2.5W |
| Lens Resolution | 1200TVL |
| Maximum Charging Power | 80W |
| Maximum Effective Signal Distance | 7-10km |
| Battery Type | Polymer battery |
| Overall Battery Weight | 731g |
| -10℃ to +40℃ | |
| Battery Capacity | 5000mAh |
| Battery Voltage | 6-8.4V |
| Battery Energy | 37Wh |
| -10℃ to +40℃ Dock charger | |
| Charging Method | Socket |
| Resolution | 480*272 pixels |
| Brightness | 500cd/m² |
| Video Latency | Zero latency |
| Receiver Frequency | 5.8GHz 48CH |
| Operating Temperature | -20℃ to +60℃ |
| Dimensions | 156mm*150mm*95mm |
| Input | 220V |
| Rated Power | 80W |
Company Profile:
We, Shenzhen Tian Fu Technology Co.,Ltd was founded in Shenzhen,China in 2013，specialize in the original design and manufacturing (ODM) of a comprehensive range of drones. Our portfolio includes agile multi-rotor drones for inspection and cinematography, robust fixed-wing UAVs for long-range mapping and surveying, and specialized hybrid VTOL models that combine the best of both worlds for complex missions. Each product category is developed to meet specific industrial demands.
Quality is embedded in our DNA. From automated SMT assembly lines for flawless circuit boards to meticulous stress-testing of every frame and motor, we enforce a "zero-defect" ethos at every production stage. Our technical edge is powered by proprietary innovations like our Adaptive Flight Control System for superior stability in challenging conditions and an Intelligent Battery Management System that maximizes safety and flight time.
Beyond our own Tianfu brand, we are a trusted partner in OEM/ODM manufacturing. We manage the entire process for client brands—from initial design prototyping and regulatory compliance support to final white-label production and quality assurance—ensuring every product bearing a partner's name meets our high standard of excellence.
At Tianfu Technology, we don't just build drones; we engineer reliable aerial solutions and trusted manufacturing partnerships for the global market.
